Industrial small servo drive system
with more than 12.000 possible configurations

Integration and performance without limits: The industrial small servo drive system allows the simple and future-proof implementation of high-performance applications with a power range of up to 500 Watt. The intelligent cyber® simco® drive servo controller offer maximum flexibility thanks to its numerous interfaces. Together with servo motors and servo actuators of the cyber® dynamic line, the smart servo drives series form a complete system. All in all, more than 12.000 different motor-controller combinations can now be configured out of the modular system.

  • Small servo drive system

    Servo motors and servo actuators of the cyber® dynamic line complete the smart servo controller series cyber® simco® line to a complete drive system.

  • Product family cyber® simco® line

    cyber® simco® drive is a servo controller for sinusoidal-commutated servomotors in the voltage range of 16 to 56 VDC and a peak power of up to 5 kW.

  • Use in the control cabinet or decentralized

    The servo drives are available as a control cabinet version with a protection class of IP20 or as a decentralized version with a protection class of IP65.

  • Product family cyber® dynamic line

    The cyber® dynamic line brushless servomotors are available in four sizes and can optionally be equipped with a planetary gear and a ball screw.

  • cyber® dynamic motors

    Equipped with high-quality stainless steel housing and absolute encoder, the cyber® dynamic line motor series offers maximum reliability and precision.

  • cyber® dynamic actuators L

    With the cyber® dynamic line linear actuators, the servomotor, the ball screw drive, the linear guide and the encoder system form a closed, highly integrated and ready-to-install unit.

  • Inox - and Hygienic Design

    The servomotors and actuators of the cyber® dynamic line are optionally available in full stainless steel (Inox design) or hygienic design.

  • Sectional view cyber® dynamic actuators L

    The small servo motors with integrated ball screw are available in four sizes with two spindle pitches each and two different stroke lengths for short and long stroke applications.


Excellent solution for complex motion tasks

Flexibility

  • Over 15.000 variants in the modular system

  • Integrated PLC functionality

  • Intuitive software for easy commissioning and optimization of the system

Dynamics

  • High overload capacity
  • Low mass inertia
  • Switching frequency from 8 to 32 kHz for dynamic movements
  • Ideal for dynamic processes with short cycle times

Compactness

  • Motors with an outer diameter up to 17 mm

  • Decentralized use of the controller for space savings in the control cabinet

  • Single cable technology

Precision

  • Encoder resolution: 12 bits
  • High current resolution of 14 bits for high-precision torque control

Reproducibility

  • High process reliability thanks to reproducible processes

  • Easy integration into your fieldbus systems

Efficiency

  • Energy efficient, maintenance free drives
  • Less heat dissipation

Connectivity

  • Numerous real-time capable fieldbuses to connect to your fieldbus systems

  • Automatic motor parameterization thanks to the electronic identification plate

Consulting and sizing

  • Individual on-site consulting
  • Telephone support hotline
  • Sizing with cymex®
  • Documentation in EPLAN

cyber® simco® line

The cyber® simco® drive is a servo drive for sine-commutated servo motors in the voltage range of 16 to 56 VDC and a maximum capacity of up to 5 kW. The cyber® simco® drive is available as a control cabinet variant or in a decentralized design with protection rating IP65. In combination with the intuitive MotionGUI software, simple parameterization, commissioning and optimization of the system as well as flexible programming of applications is possible.

More about the product portfolio

Simple to install using a rail clip – perfect design for swtich cabinets

High precision and dynamic torque control to achieve higher machine output

Extremely compact: up to 30% installation space saving

Numerous fieldbus interfaces

Simple installation in the machine without enclosure thanks to protection class IP65

Safe shutdown of the system in case of emergency thanks to integrated STO (Safe Torque Off) safety function to SIL3 without loss of productivity

Support of PLC-specific drive profiles and function blocks

Regular software releases to integrate new functionalities

Electronic type plate enables automatic and safe parametrization of the motor


cyber® dynamic line

Servo motors

Servo motors

The cyber® dynamic line brushless servo motors in standard, inox or hygienic design are available in four sizes with an outer diameter of 17 to 40 mm. These stainless steel housed motors are equipped with absolute feedback and deliver unparalleled performance, reliability and value from the smallest package. The cable chain compatible and double shielded single cable solution is designed for use in industrial areas.

Single-cable solution with industrial grade connector

High quality stainless steel housing

DC bus voltage 48 VDC

Protection class up to IP69K (mounted)

Integrated feedback system: Absolute single-turn encoder or incremental encoder

Hotspot 1: Single-cable solution with industrial grade connector

Single-cable solution with industrial grade connector

Hotspot 2: High quality stainless steel housing

High quality stainless steel housing

Hotspot 3: DC bus voltage 48 VDC

DC bus voltage 48 VDC

Hotspot 4: Protection class IP54 (mounted)

Protection class up to IP69K (mounted)

Hotspot 5: Integrated feedback system

Integrated feedback system: Absolute single-turn encoder or incremental encoder

Servo actuators

Servo actuators

The industrial grade small servo motors can be combined with one to three-stage planetary gearboxes to convert torques up to 12 Nm. Thanks to a cohesive connection they form a highly compact unit without an additional adapter plate.

Single-cable solution with industrial grade connector

Very compact – no adapter plate needed

One to three stages

High precision planetary gearbox

Motor and gearbox welded into a single unit

Hotspot 1: Single-cable solution with industrial grade connector

Single-cable solution with industrial grade connector

Hotspot 2: Very compact – no adapter plate needed

Very compact – no adapter plate needed

Hotspot 3: One to three stages

One to three stages

Hotspot 4: High precision planetary gearbox

High precision planetary gearbox

Hotspot 5: Motor and gearbox welded into a single unit

Motor and gearbox welded into a single unit

Linear actuators

Linear actuators

The industrial grade servomotors of the cyber® dynamic line with integrated ball screw are the ideal solution for dynamic positioning processes. In the actuator version, the servomotor, the ball screw, the linear guidance and the feedback system form a closed, highly integrated and ready-to-install unit. They represent an energy-efficient and maintenance-free alternative to pneumatic cylinders.

Built-in linear guide rail with anti-rotation mechanism

Closed pushing rod with integrated wiper

Integrated ball screw

Reinforced thrust bearing

Protection class up to IP69K (mounted)

Hostpot 1: Built-in linear guide rail with anti-rotation mechanism

Built-in linear guide rail with anti-rotation mechanism

Hostpot 2: Closed thrust tube

Closed pushing rod with integrated wiper

Hostpot 3: Integrated ball screw

Integrated ball screw

Hostpot 4: Reinforced thrust bearing

Reinforced thrust bearing

Hostpot 5: Protection class IP54 (mounted)

Protection class up to IP69K (mounted)


Use in practice

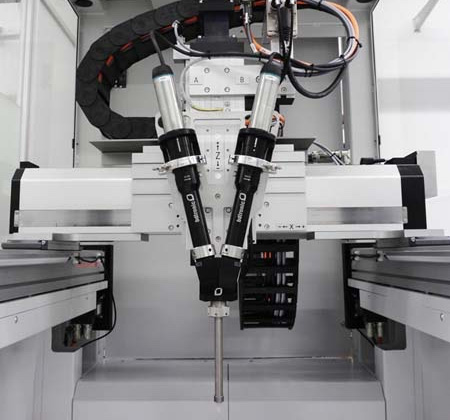

PRECISE DISPENSING OF TINY QUANTITIES

In consultation with the engineers and technicians, an optimal solution was created that meets the requirements of the metering system.

Markus Rieger, Sales Director Germany, bdtronic

PRECISE DISPENSING OF TINY QUANTITIES

Read more

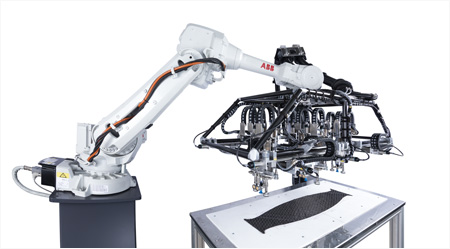

SERVO TECHNOLOGY GIVES THE GRIPPER SPIDER MAXIMUM FLEXIBILITY

Unlike pneumatics, for instance, the servo technology allows positions to be approached flexibly without any mechanical retooling. That was an advantage for the process.
