cyber® kit line large – frameless servo motors

  • cyber® kit line large – Frameless servo motors

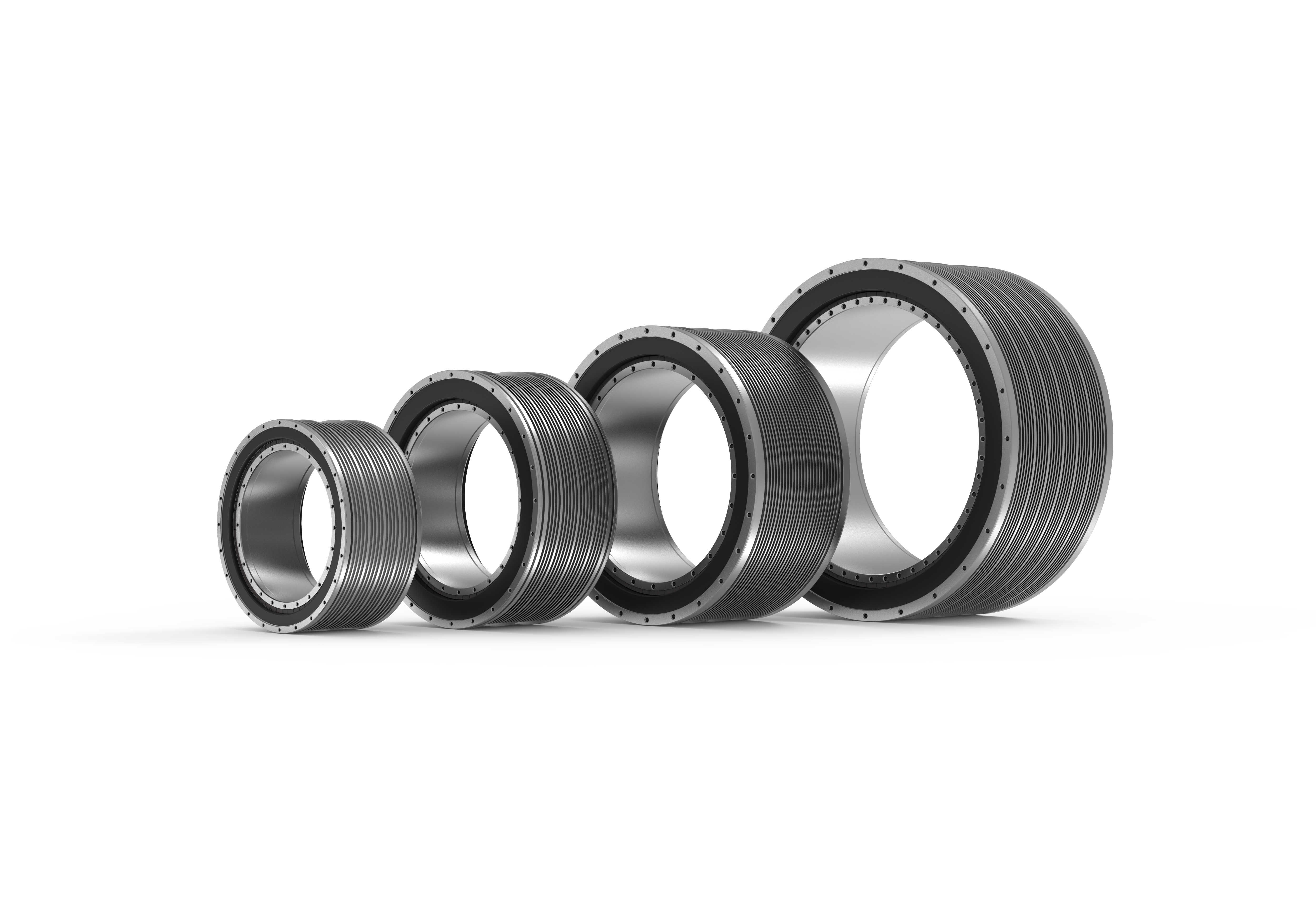

  • cyber® kit line large – Frameless servo motors in size 290, 360, 420 and 530 mm

high torque – highly integrated – flexible

The frameless servo motors of the cyber® kit line product family offer maximum torque and flexibility in a compact size. In addition, the frameless design with a large hollow shaft gives the highest possible freedom of integration to develop unique solutions for specific applications. The assembly kit, consisting of rotor and stator, can be flexibly integrated into the machine thanks to the variety of variants.

Furthermore, the high-performance direct drives (torque motors) are the ideal solution for e.g. applications within machine tools.

Downloads

Webinar technical training:
How frameless servo motors are used

In this webinar, you will learn about the possible applications of our frameless servo motors from a technical perspective. You will learn what to consider when selecting, sizing, installing and operating these motors.



Register now

Excellent solution for complex motion tasks

High torque

  • Highest torque density thanks to maximum copper fill factor

Integratability

  • Frameless version
  • Large hollow shaft

Flexibility

  • 600 V design
  • Wide range of choices

Reliability

  • Complete potting for enormous robustness
  • Sizing safety

Product highlights

With a wide range of choices, the cyber® kit line large provides the most flexibility for the user. The torque-optimized motors offer the highest level of robustness through their full potting and maximum integratability due to the frameless design with a large hollow shaft.

600 V version

Large hollow shaft

Integrated temperature sensors

Several lengths per size

Technical data

Size 290

   290-050290-100290-200
DC bus voltageUDC VDC560
Maximum powerPmaxW119001180025900
Maximum torqueMmaxNm580,001120,002310,00
Maximum current ImaxA33,043,093,0
Continuous stall torqueM0Nm255,00493,001002,00
Continuous stall currentI0A16,021,044,0
No-load speedn0min-1364240251
Stator outer diameter A1mm310
Stator lengthBmm90140240
Lamination lengthB1mm60110210
Rotor inner diameterDmm220

Size 360

   360-050360-100360-200
DC bus voltageUDC VDC560
Maximum powerPmaxW112001730019800
Maximum torqueMmaxNm1122,002066,004059,00
Maximum current ImaxA45,076,0110,0
Continuous stall torqueM0Nm484,00902,001583,00
Continuous stall currentI0A20,033,046,0
No-load speedn0min-1236209147
Stator outer diameter A1mm385
Stator lengthBmm110160260
Lamination lengthB1mm70120220
Rotor inner diameterDmm265

Size 420

   420-070420-150
DC bus voltageUDC VDC560
Maximum powerPmaxW2033030800
Maximum torqueMmaxNm2234,004447,00
Maximum current ImaxA82,0138,0
Continuous stall torqueM0Nm968,001945,00
Continuous stall currentI0A35,058,0
No-load speedn0min-1206168
Stator outer diameter A1mm455
Stator lengthBmm130210
Lamination lengthB1mm90170
Rotor inner diameterDmm325

Size 530

   530-100530-200
DC bus voltageUDC VDC560
Maximum powerPmaxW3180060000
Maximum torqueMmaxNm4847,009191,00
Maximum current ImaxA109,0209,0
Continuous stall torqueM0Nm2094,003982,00
Continuous stall currentI0A50,095,0
No-load speedn0min-1137137
Stator outer diameter A1mm565
Stator lengthBmm160260
Lamination lengthB1mm120220
Rotor inner diameterDmm420
