cyber® dynamic motor – brushless servo motors

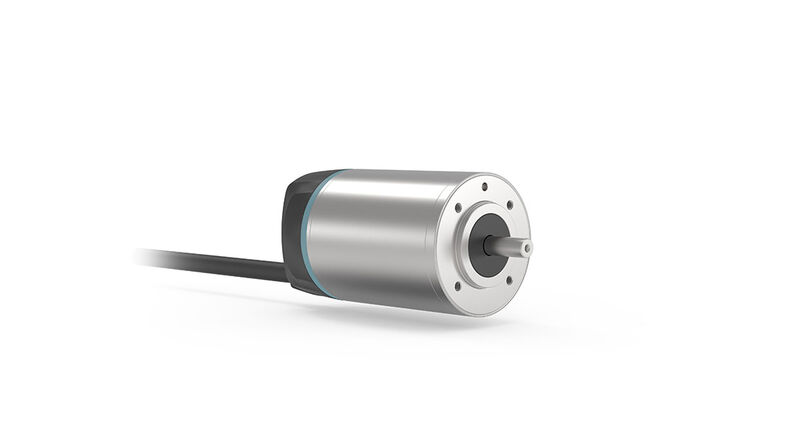

Servo motor cyber® dynamic line
Product family cyber® dynamic line
Servo motor, rotative actuator or linear actuator

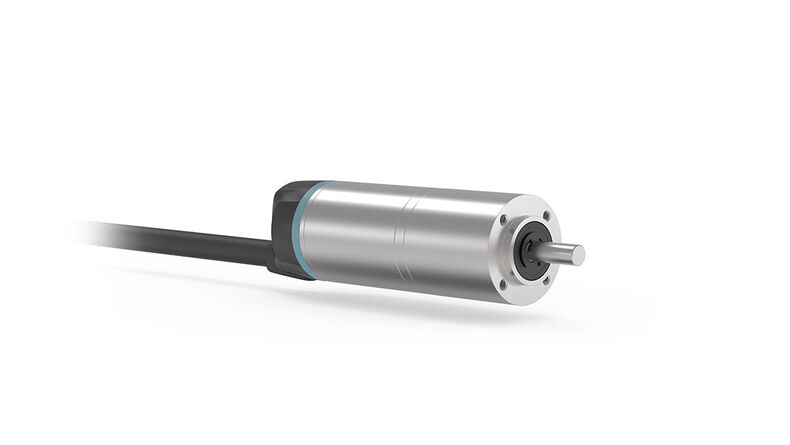

Servo motor cyber® dynamic line with gearbox
Servo motor cyber® dynamic line – Inox Design and Hygienic Design
Small servo drive system: cyber® simco® drive 2, cyber® dynamic system and cyber® dynamic line
dynamic – high torque – efficient
cyber® dynamic line servomotors are the smart choice for limited space applications. These stainless steel housed motors are equipped with absolute feedback (Singleturn and Multiturn) and deliver unparalleled performance, reliability and value from the smallest package.
The motors can be optionally extended with a holding brake in Inox- and Hygienic design, planetary gearboxes or ball screws.
For a reduced project planning workload in your electrical design, the products are now available in EPLAN.
With the cyber® dynamic motors we are a worldwide partner in the Encompass program of Rockwell Automation.
Whitepaper: Increasing machine productivity by using an Energy Harvesting multiturn encoder system
The Energy Harvesting principle is a technology that can be used to realize miniaturized, maintenance-free and energy self-sufficient multiturn encoders. Read our whitepaper to find out how the technology is applied in a multiturn encoder system, what the advantages are of using such a system and how the new technology was successfully implemented.
Excellent solution for complex motion tasks
Industrial grade
- Built-in absolute encoder
- High quality stainless steel housing
- Single-cable solution (suitable for cable carriers, EMC shielded)
- Protection class up to IP69K
Dynamics
- Maximum acceleration thanks to high overload capacity and low mass inertia
- Ideal for dynamic processes with short cycle times
Compactness
- Round design with very high torque density
- Built-in absolute-encoder Singleturn
- Built-in absolute-encoder Multiturn (size 32/40)
Precision
- Precise and flexible position control
Reproducibility
- High process reliability thanks to reproducible processes
- Easy connection to your fieldbus systems
Efficiency
- Energy efficient, maintenance free drives
- Less heat dissipation
Connectivity
- Numerous real-time capable fieldbuses to connect to your fieldbus systems
- Automatic motor parameterization thanks to the electronic identification plate
Consulting and sizing
- Individual on-site consulting
- Sizing with cymex®
- Documentation in EPLAN
Product variants
Servomotors Standard
cyber® dynamic motor

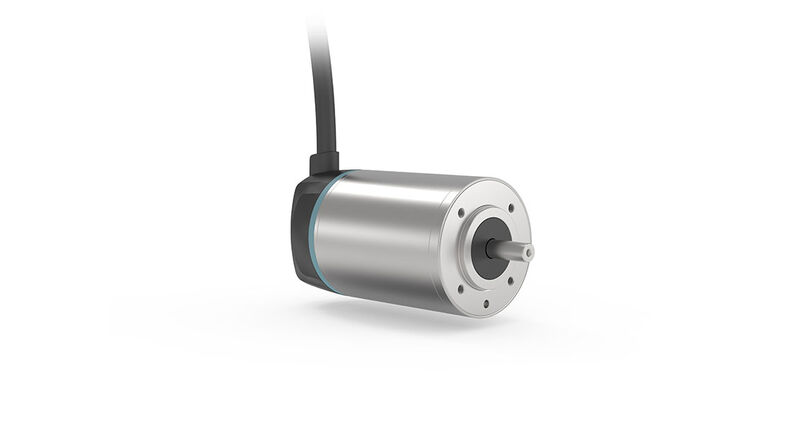

The brushless servo motors in the cyber® dynamic line are the professional choice for your application. Featuring a high quality stainless steel housing and an absolute-encoder as Singleturn and Multiturn (size 32/40), our new motor line offers outstanding reliability and precision. The double-shielded, single-cable solution was designed for industrial applications and can be used in cable carriers.
High quality stainless steel housing
Integrated feedback system
- Absolute single-turn encoder
- Incremental encoder
DC bus voltage 48 VDC
Protection class IP54 (mounted)
Single-cable solution with industrial grade connector
Servomotors Inox Design
cyber® dynamic motor in corrosion resistant design
Protection against corrosion plays a major role in quality and service optimized production – the demand for solutions integrated in the process is growing all the time. WITTENSTEIN can also supply a corrosion resistant version of the cyber® dynamic line for applications where highly robust, industrial grade small servo motors are stipulated. Optionally, this variant can be extended with a holding brake in size 40 mm.
Industrial grade cable gland
Protection class IP66/67 (mounted)
Single-cable solution with industrial grade connector
All parts are welded together
100% stainless steel design
Optional with brake for size 40 mm
Servomotors Hygienic Design
cyber® dynamic motor in hygienic design

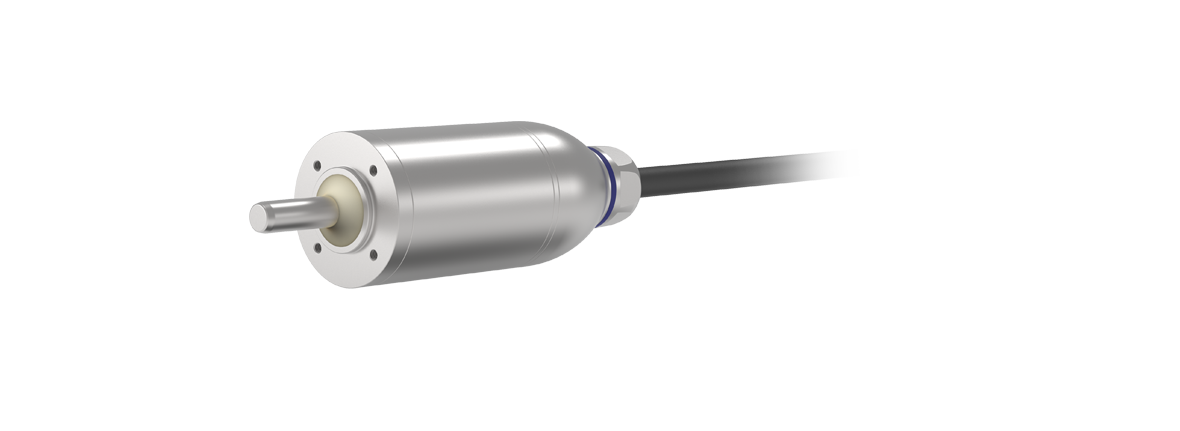

Our hygienic drives in the cyber® dynamic line allow hygienic and sterile automation. These motors are strictly in conformity with EHEDG (European Hygienic Engineering & Design Group) guidelines and therefore ideal for all production and packaging tasks where absolute cleanliness is a must. Experience a new freedom in design by directly integrating our motors in your production process. Optionally, this variant can be extended with a holding brake in size 40 mm.
Single-cable solution with industrial grade connector
Food grade lubrication
Integrated sealing concept
No dead spots
Protection class IP69K (mounted)
Optional with brake for size 40 mm
Servoactuators
Standard
cyber® dynamic actuator R

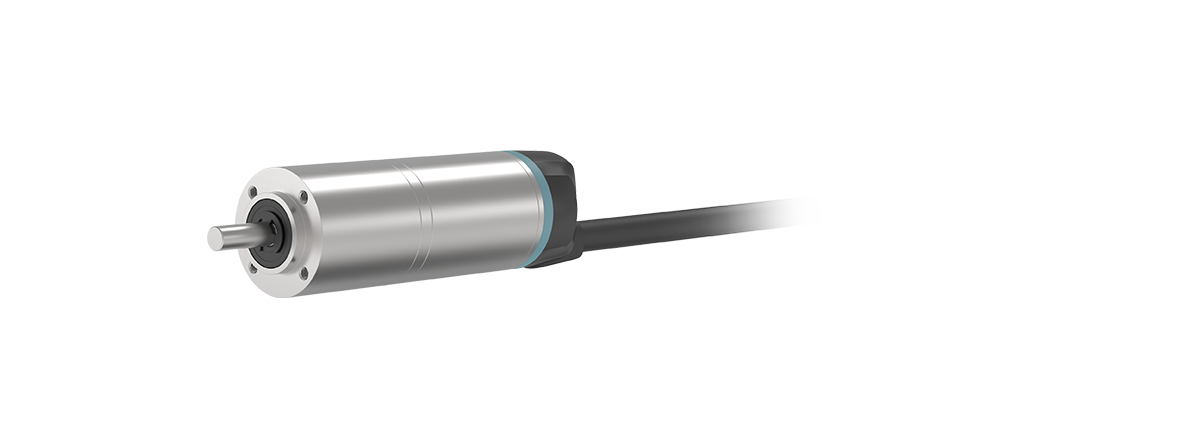

The perfectly matched motor gearbox combinations (NP or GCP) can deliver up to 21 Nm of continuous torque. With gearboxes from one to three stages we offer a wide portfolio of options. Very compact design due to the integration of the motor and gearbox.
Single-cable solution with industrial grade connector
Very compact – no adapter plate needed
One to three stages
High precision planetary gearboxes (NP or GCP)
Motor and gearbox welded into a single unit
Integrated feedback system
- Absolute single-turn encoder
- Incremental encoder
Inox Design
cyber® dynamic actuator R in corrosion resistant design
The corrosion resistant servo motors in the cyber® dynamic line can be optionally equipped with a planetary gearbox (NP or GCP). They deliver up to 21 Nm of torque with an outer diameter of 40 mm. The robust design and the consistent use of stainless steel mean the drives can be integrated directly in the process. Optionally, this variant can be extended with a holding brake in size 40 mm.
Industrial grade cable gland
Motor and gearbox welded into a single unit
One to three stages
High precision planetary gearboxes (NP or GCP)
100% stainless steel design
Optional with brake for size 40 mm
Hygienic Design
cyber® dynamic actuator R in hygienic design
The hygienic design servo motors in the cyber® dynamic line can be optionally equipped with a planetary gearbox (CP). They deliver up to 8 Nm of torque with an outer diameter of 40 mm. These actuators are strictly in conformity with EHEDG (European Hygienic Engineering & Design Group) guidelines and therefore ideal for all production and packaging tasks where absolute cleanliness is a must. Experience a new freedom in design by directly integrating our motors in your production process. Optionally, this variant can be extended with a holding brake in size 40 mm.
High precision planetary gearbox (CP)
Single-cable solution with industrial grade connector
Optional with brake for size 40 mm
Integrated sealing concept
Food grade lubrication
No dead spots
Small servo drive system
High-dynamic servo motors in the sizes 17 - 40 mm (optionally with gearbox and ball screw drive)
Numerous fieldbus interfaces and decentral intelligence
Safe shutdown of the system in case of emergency thanks to integrated STO (Safe Torque Off) safety function according to SIL3 without loss of productivity
Space-saving installation thanks to stackability and user-friendly pin assignment
Electronic name plate enables automatic and safe parametrization of the motor
Simple installation in the machine without an additional enclosure thanks to protection class IP65
The cyber® simco® drive 2 servo drive, the cyber® dynamic line motor series and the cyber® dynamic system are a complete match in every respect.
You can choose between numerous different fieldbus interfaces for easy connection to your higher-level controller.
